SGM61020XKB6G.pdf• 2.5V to 5.5V Input Voltage Range
• Adjustable Output Voltage from 0.6V to VIN
• Up to 95% Efficiency
• Low RDSON Switches (102mΩ/57mΩ)
• Power-Save Mode for Light Load Efficiency
• 42μA (TYP) Operating Quiescent Current
• 100% Duty Cycle for Low Dropout Operation
• 1.5MHz PWM Switching Frequency
• Power Good Output (SGM61020P Only)
• Over-Current Protection
• Thermal Shutdown Protection
• Input Under-Voltage Lockout (UVLO) Protection
• -40℃ to +125℃ Operating Temperature Range

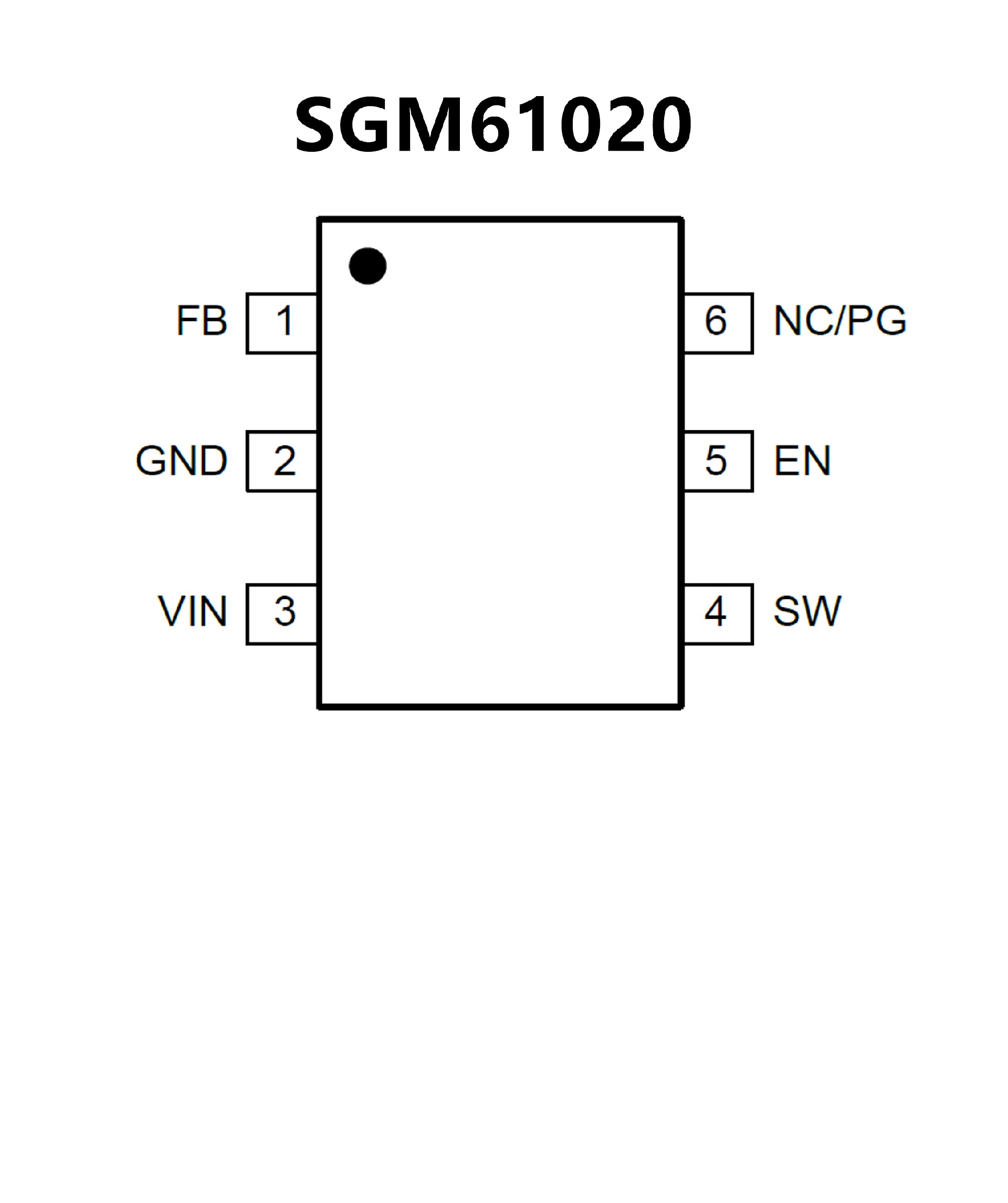

• Small Packaging:
SGM61020: Available in Green SOT-23-5
andSOT-563-6 Packages
SGM61020P: Available in a
Green SOT-563-6Package
• Forced PWM to reduce output voltage ripple
• Up to 95% efficiency
• Low RDS(ON) switches: 100 mΩ / 60 mΩ
• 2.5-V to 5.5-V input voltage range
• Adjustable output voltage from 0.6 V to VIN
• 100% duty cycle for lowest dropout
• 1.5-MHz typical switching frequency
• Power good output
• Over current protection
• Internal soft startup
• Thermal shutdown protection
• Available in SOT563 package

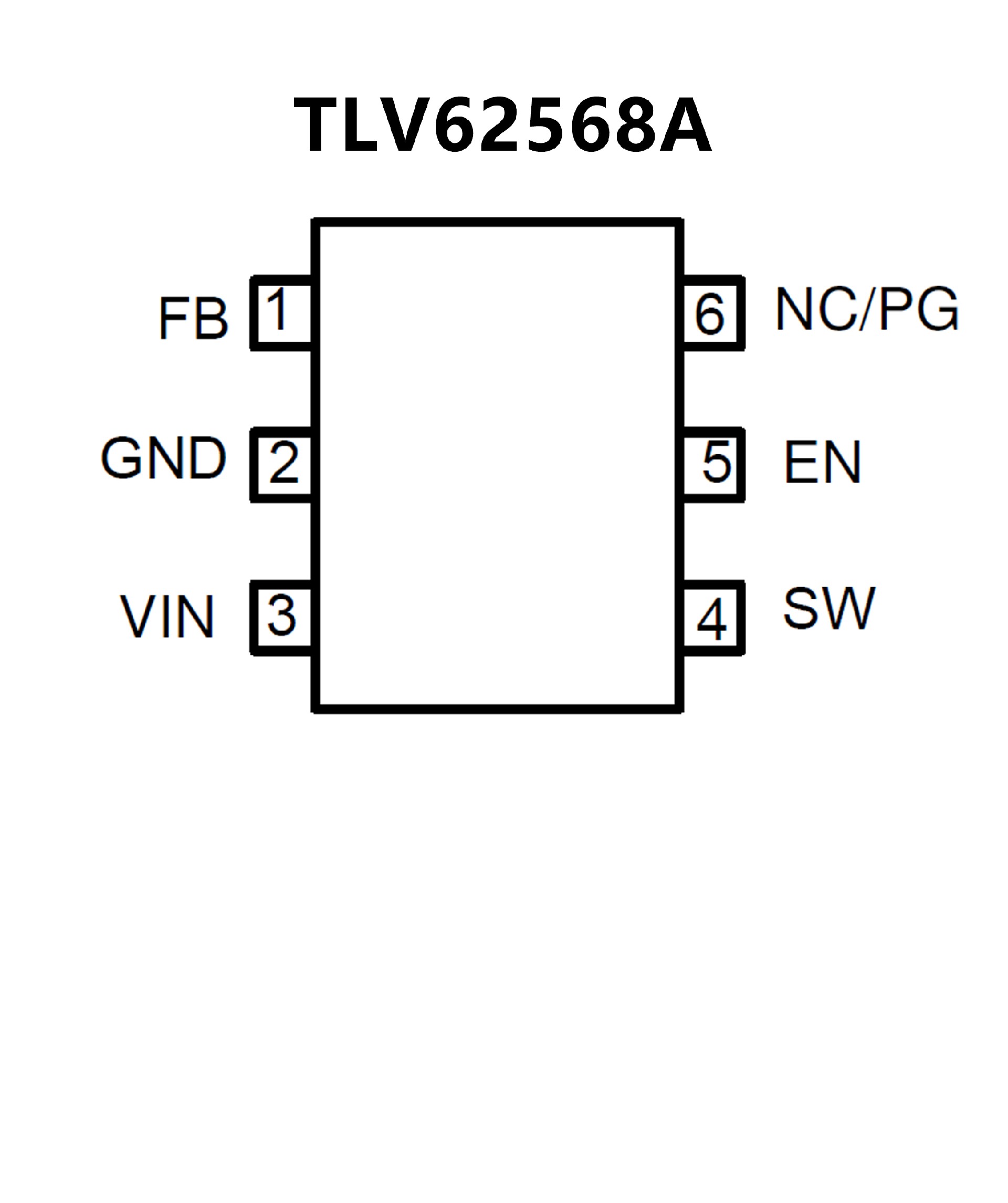

• Pin-to-pin compatible with TLV62568, TLV62569
• Create a custom design with the WEBENCH®
Power Designer
