6.5ns, Rail-to-Rail I/O,High Speed Comparators, SGM8752-2XS8G/TR Replace TLV3502.
SGM8752-2XS8G/TR
SGM8752-2XS8G/TR.pdf
SGM8752-2XS8G/TR.pdfFEATURES
• High Speed: 6.5ns Propagation Delay
• Push-Pull CMOS Output Structure
• Rail-to-Rail Input and Output
• Supply Voltage: 2.7V to 5.5V
• Shutdown (SGM8752-3 Only)
• Low Quiescent Current: 1.8mA/Channel
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8752-1 Available in a Green SOT-23-5 Package
SGM8752-2 Available in Green SOT-23-8 and
SOIC-8 Packages
SGM8752-3 Available in a Green SOT-23-6 Package

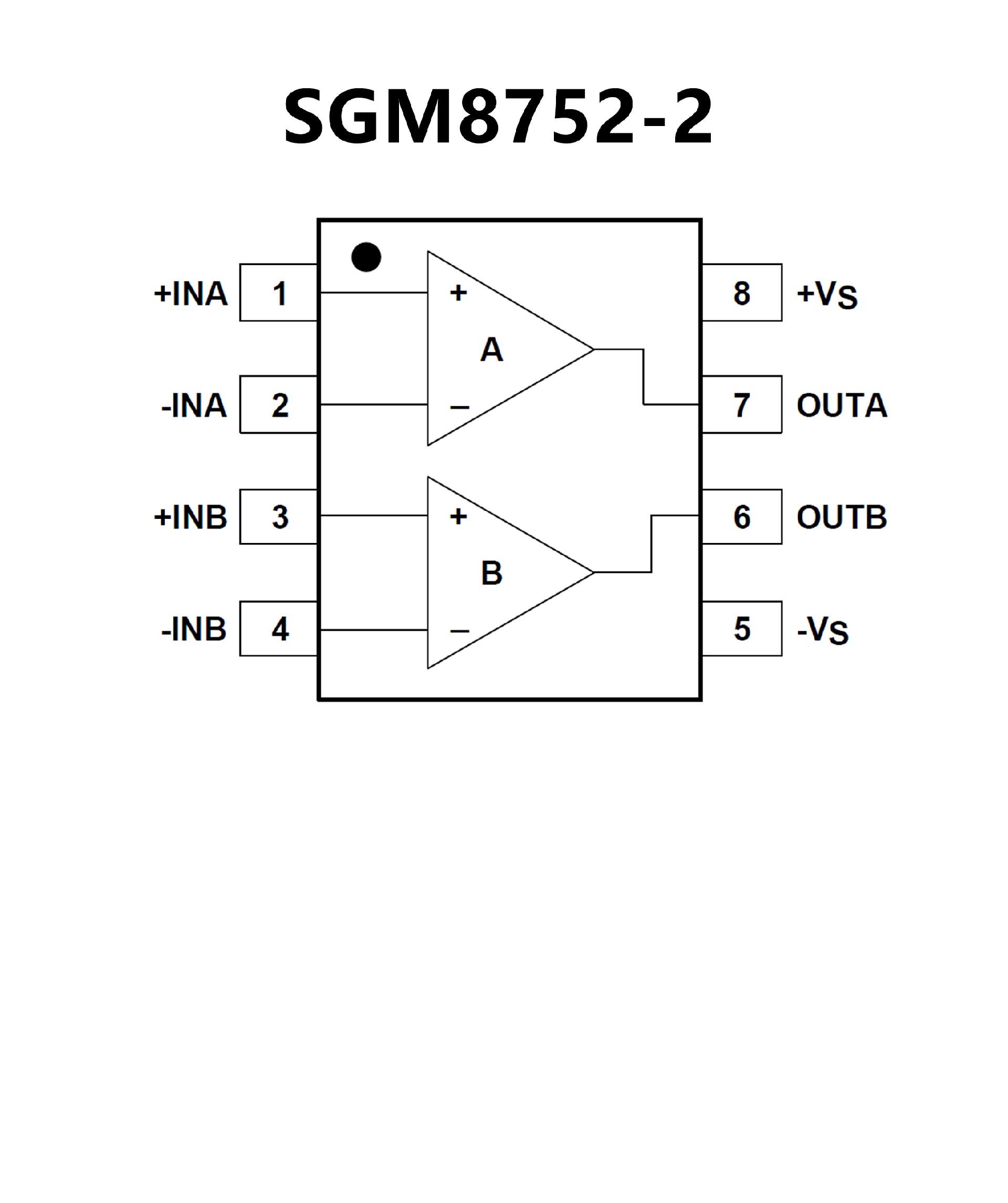

PIN CONFIGUTION
优势替代
FEATURES
• High Speed: 4.5 ns
• Rail-to-Rail I/O
• Supply Voltage: 2.7 V to 5.5 V
• Push-Pull CMOS Output Stage
• Shutdown (TLV3501 Only)
• Micro Packages: 6-Pin SOT-23 (Single), 8-Pin
SOT-23 (Dual)
• Low Supply Current: 3.2 mA

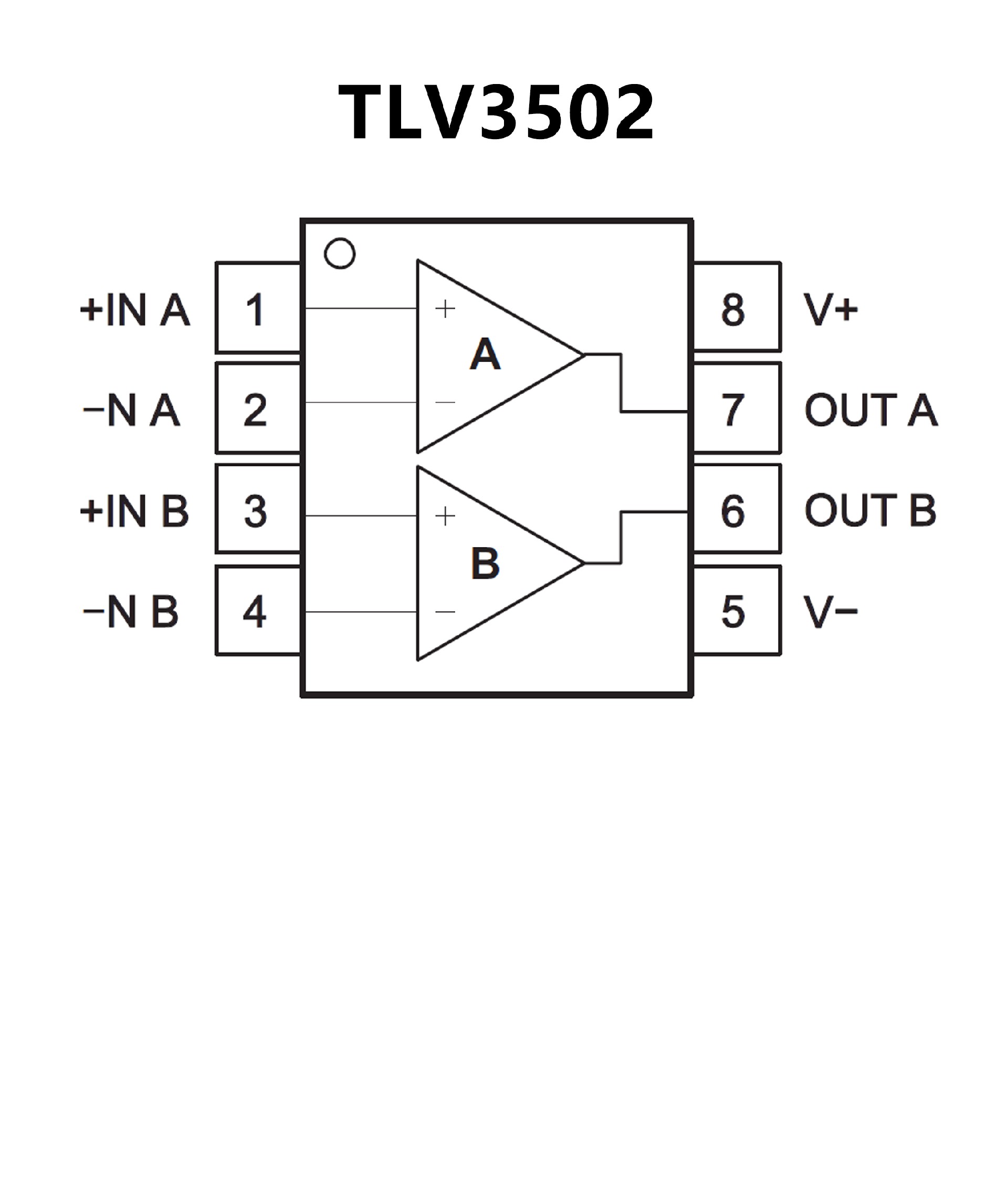

PIN CONFIGUTION
