• Input Offset Voltage: 1.8mV (MAX)

• Low Input Bias Current: 5pA (TYP)

• High CMRR: 98dB (TYP)

• Unity-Gain Stable

• Gain-Bandwidth Product: 2.5MHz

• Phase Margin: 60° for G = 1 and CL = 10pF

• Low Noise: 15nV/√Hz at 1kHz

• Rail-to-Rail Input and Output

• Support Single or Dual Power Supplies:

  2.7V to 36V or ±1.35V to ±18V

• Low Quiescent Current: 475μA/Amplifier

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

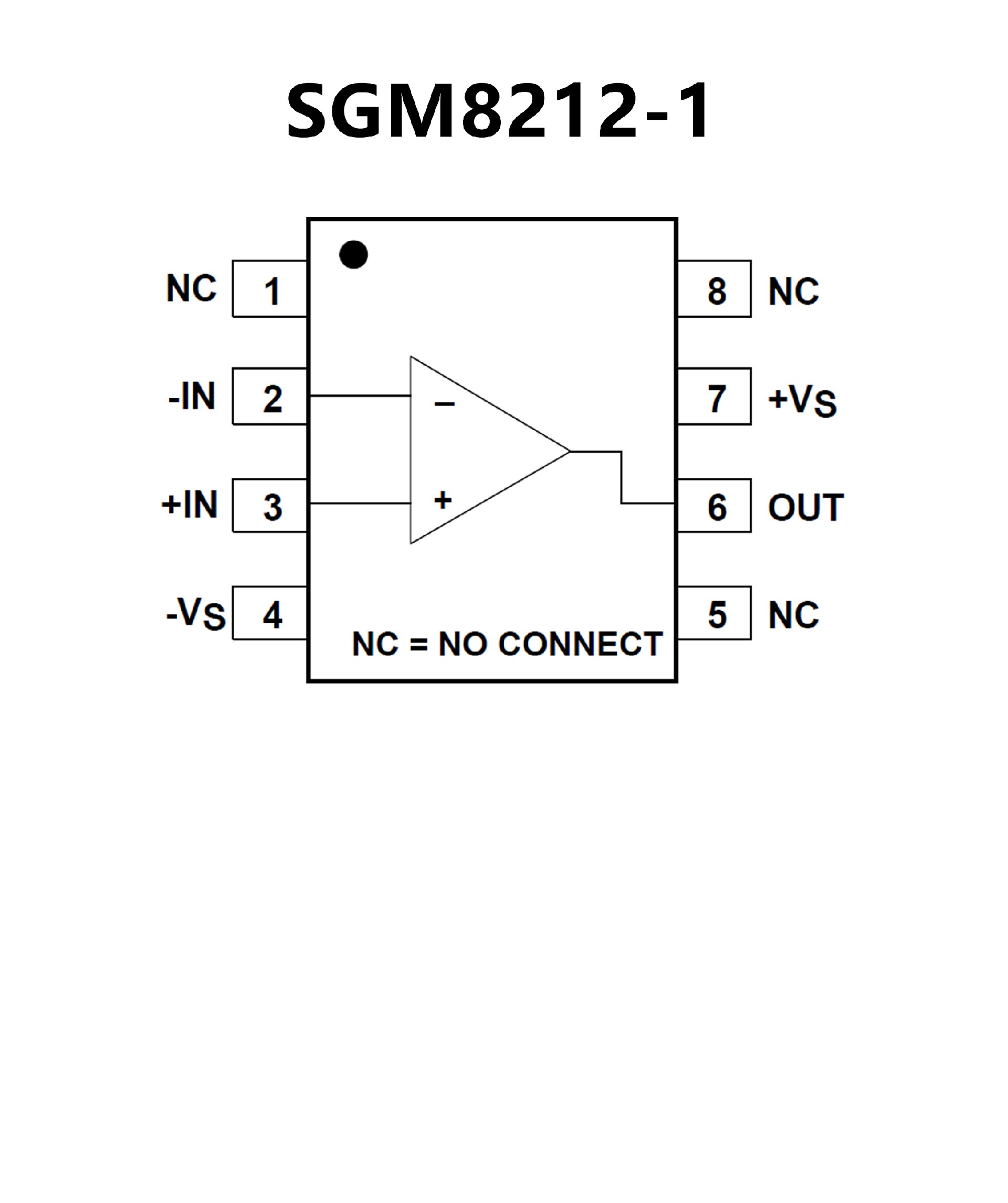

  SGM8212-1 Available in Green

  SOT-553-5, SOT-23-5

  and SOIC-8 Packages

  SGM8212-2 Available in Green SOIC-8 and

  TDFN-3×3-8L Packages
